Panel Sizing High Wear Resistance Polycrystal Diamond Material PCD Saw Blade

Product Categories

Chengdu Yibai Technology Co., Ltd.

Contact Now

Panel Sizing High Wear Resistance Polycrystal Diamond Material PCD Saw Blade

Brand Name : KWS

Model Number : K5

Place of Origin : Chengdu, China

MOQ : 5pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 5,000pcs/month

Delivery Time : 1-30

Packaging Details : 1pc/package

Application : Wood Cutting

Package : Aluminum Box

Country of Origin : Chengdu, China

Finishing : Plating

Advantage : Sharpness and Durable

Teeth type : TCG

Contact Now

High Wear Resistance Polycrystal Diamond Panel Sizing Saw Blade

Product Information

The saw blade is made of high quality imported tool steel and PCD alloy cutter head, featuring high precision, low noise, good wear resistance and long service life. The special tooth design of the TCG tooth chamfering on flat tips makes the cutting speed fast without chipping, and is not easy to break the teeth. Suitable for electronic cutting saws, double end milling and other equipment.

Application: To size panels in single sheet or in stacks eg.: veneer, paper melamine, laminated chipboard, MDF/HDF etc.

Technical information: CP coating tech. reduces friction between body and work piece.

Advantages: Special selected polly crystal diamond materials and strictly QC in each process which completely helps to extend the tens of times longer cutting life than normal carbide.

Note: Greatly brings out its high efficiency.

Specificaiton

No.	D	d	B	Z	TF
1	300	30	4.4	72	TP
2	320	65	4.4	72	TP
3	350	30/60	4.4	72	TP
4	355	25.4	3.5	96	TP
5	360	65	4.4	72	TP
6	380	60	4.4	84	TP
7	400	60	4.4	71	TP

Note

1. D=Outer Diameter, d=Center Hole Diameter, B=Tooth Thickness, Z=No. of Tooth, TF=Tooth Feature.
2. Other specifications can be made according to customers' requirements.

Product Photos

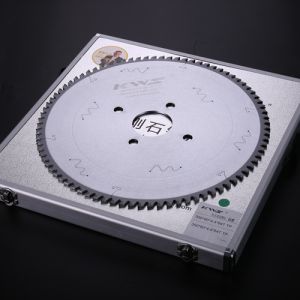

Panel Sizing High Wear Resistance Polycrystal Diamond Material PCD Saw Blade
